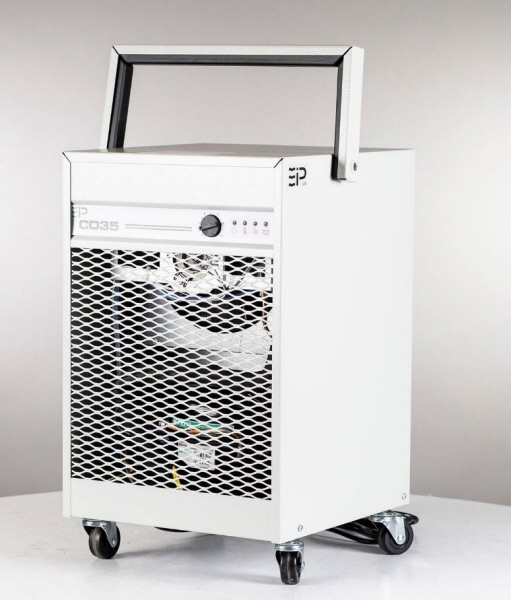

The EIPL range of Bkool Spot coolers have been sized to provide cooling for all sized applications. All units are powered from a regular 230V domestic supply available in all properties. The self contained, “plug and play” equipment allows easy installation, just connect a suitable duct to the outlet and position, preferable outside, alternatively outside the space to be cooled, connect to a suitable power source and adjust the digital thermostat to the desired temperature.

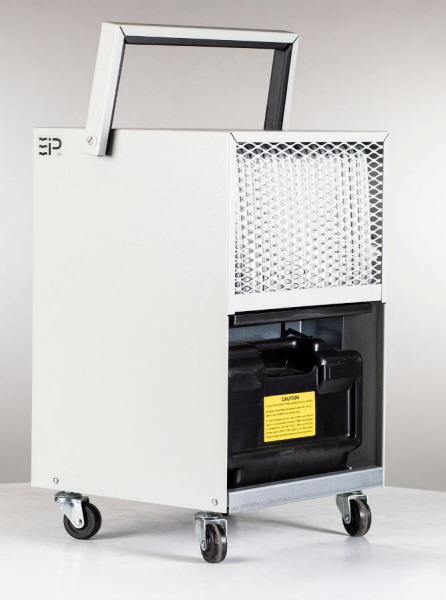

As the BKool Spot Cooler cools the air, moisture is also removed. This water is collected in the internal container, alternatively the container can be changed for a high capacity internal condensate pump, allowing the unit to run for long periods unattended. Safety is always an important consideration with EIPL, therefore the BKool range incorporates both High and Low Pressure switches which prevent the unit from running in unsafe conditions. The large diameter robust castors allow the unit to be easily manoeuvred into positioned, and the brake applied to prevent movement during operation.
EIPL 44+ YEARS OF PROVEN EXPERIANCE
EIPL have for many years designed and manufactured bespoke Air Conditiong systems for the Military and Rail markets. Customers include:- BAE Systems, AirBus, Alstom, Bombardier and many more. The key requirement when designing for these markets is robustness and reliability. This experience has now been used to develop a range of Spot Coolers aimed towards the commercial / Industrial markets.
EIPL BKool RANGE
| Height (mm) |
1,130 |
| Width (mm) |
500 |
| Depth (mm) |
675 |
| Weight(kgs) |
88 |
| Voltage |
230 |
| Phase |
1 |
| Frequency(Hz) |
50 |
| Power(kW) |
1.7 |
| Current(A) |
7 |
| Cooling Capacity (BTU) |
12,000 |
| Evaporator Airflow (m3/hr) |
640 |
| Condenser Airflow (m3/hr) |
1,900 |
| Refrigerant |
407c |
| Water Container Capacity (lts) |
4 |
| Sound Level (dbA) |
70 |
| Condenser Duct Dia (mm) |
310 |
| Min Operating Temp (°C) |
18 |
| Max OperatingTemp (°C) |
35 |
Brand: Ebac Ltd
